All Silica Laser Surgery Fibers

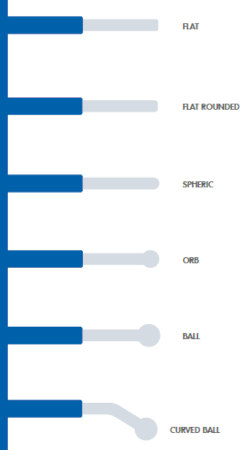

According to the individual needs of single applications a wide range of specialized tip design is available.
General Laser Surgery Fibers
(⇒ dimensional data in μm)
| Core | Clad | Total Diameter | Description |
|---|---|---|---|
| 200 | 240 | 420 | Laser Surgery Fiber 200 |
| 272 | 300 | 420 | Laser Surgery Fiber 272 |
| 365 | 400 | 580 | Laser Surgery Fiber 365 |
| 400 | 440 | 800 | Laser Surgery Fiber 400 |
| 550 | 600 | 750 | Laser Surgery Fiber 550 |
| 600 | 660 | 890 | Laser Surgery Fiber 600 |
| 800 | 840 | 1200 | Laser Surgery Fiber 800 |
| 1000 | 1100 | 1400 | Laser Surgery Fiber 1000 |

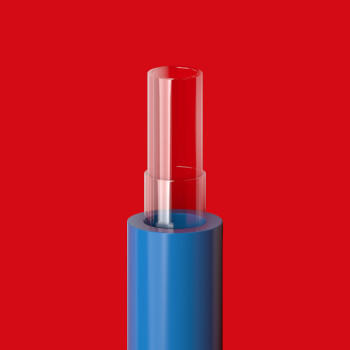

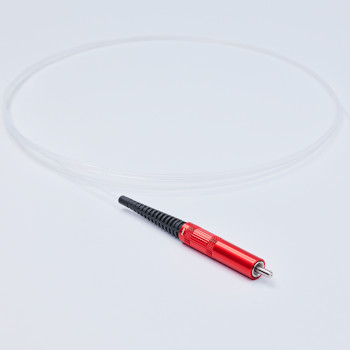

Disposable Laser Surgery Fibers
Laser Surgery Fibers for single use in various surgical applications
- pure silica fiber with highest resistance against laser damages
- NA = 0.22
- applicable for 400nm up to 2200nm
- standard length 3m
- ready to use in double sterile pouch (EO sterilized)
- standard blue polymer Jacket / Buffer (ETFE – Tefzel)
- freestanding SMA 905 connector with optional extension sleeve
- standard shelf life 24 month
Available customized features
- customer-specific RFID capsules
- F-SMA extension sleeves in various colours and characteristics
- laser engraving on extension sleeves
- shrink tubes with laser engraved additional information
- various lengths and diameters
- higher numerical apperature (e.g. 0.26)
- alternative buffer materials possible (e.g. Nylon)
- customized connector designs possible
- alternative connector designs like e.g. DIN, FC/PC
- accessories like strippers and cleavers
- LUER adapter male or female for catheter connection available

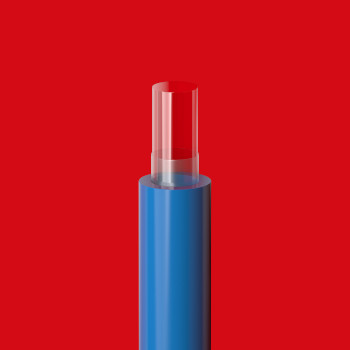

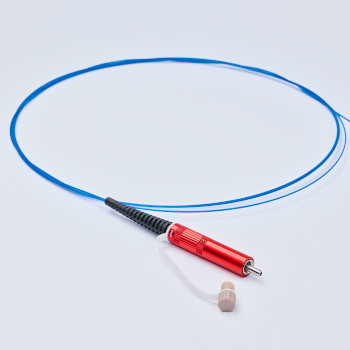

Reusable Laser Surgery Fibers
Reusable Laser Surgery Fibers for multiple use in various surgical applications
- 10 Times reusable and approved for Re-Sterilisation with franctional vacuum or gravity method and steam steriliser according to DIN EN 13060 or DIN EN 285
- pure synthetic fused silica glass core with highest resistance against laser damages
- NA = 0.22
- applicable for UV 532nm and IR up to 2200nm
- standard length 3m
- special PEEK protection cap with loss prevention
- ready to use in double sterile pouch (EO sterilized)
- standard polymer coating blue tefzel, special coatings like silicone or nylon upon request
- freestanding SMA 905 connector with optional extension sleeve
- standard shelf life 24 month
Available customized features
- customer-specific RFID capsules
- F-SMA extension sleeves in various colours and characteristics
- laser engraving on extension sleeves
- shrink tubes with laser engraved additional information
- LUER adapter male or female for catheter connection available
- various lengths and diameters
- accessories like strippers and cleavers
- higher numerical apperature (e.g. 0.26)
